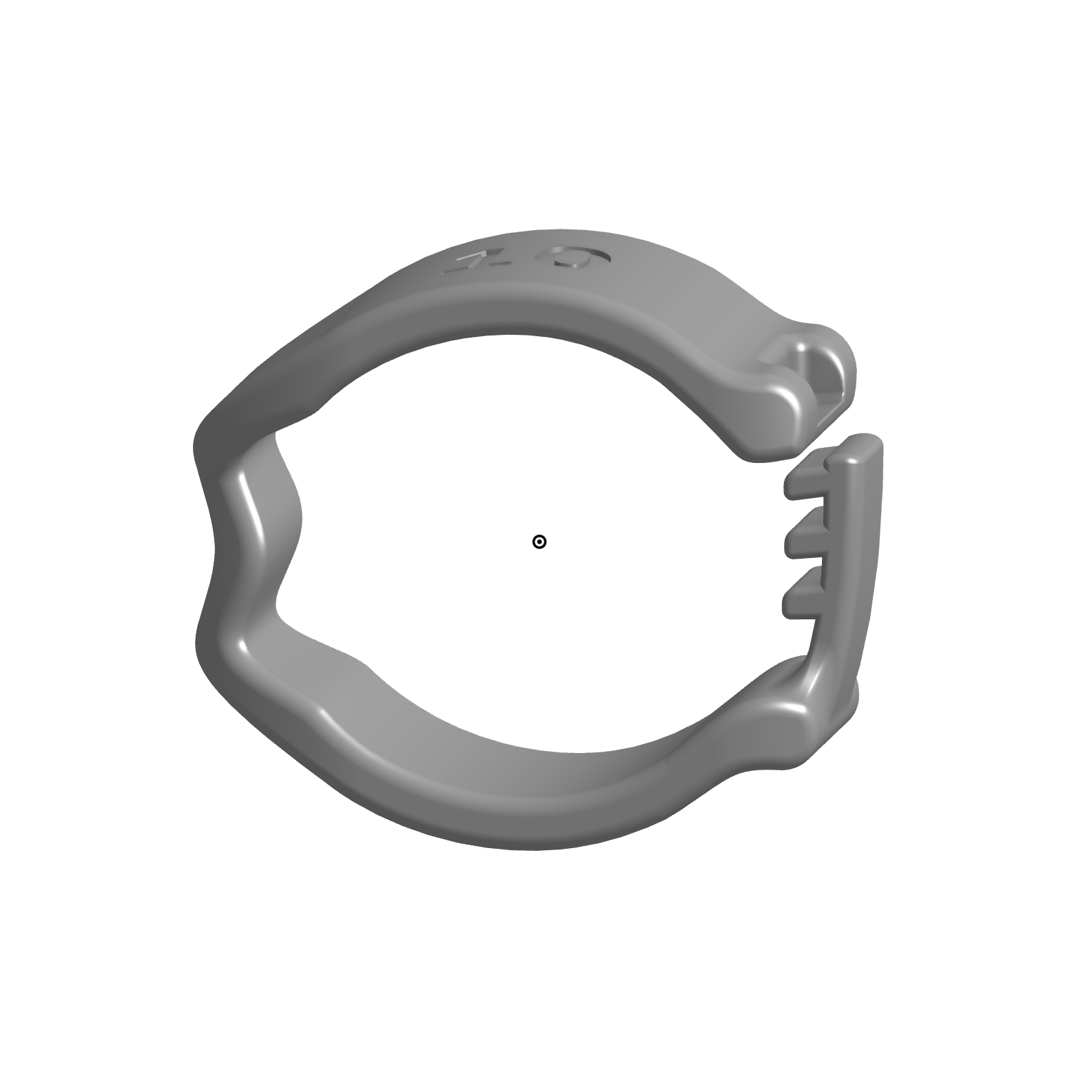

These are the STL files for our adjustable pulley splints, which allow you to 3D print them yourself.
Pulley splints aid in pulley injury recovery, specifically for grade III (full rupture of the A2 or A4) and grade IVa (full rupture of the A2 + A3 or A3 + A4). These are NOT for pulley injury prevention.
Free for personal use. Not for commercial use.
These STL files are licensed under the Creative Commons Attribution-NonCommercial 4.0 License. You may not sell or commercially distribute these files or any physical products made from them.
KEY FEATURES
📏 Wide range of sizes, from US ring size 5 to 16
🏅 Support the pulley without immobilizing the finger
☝️ Better fitment from the stepped adjustments
👌 No bruising on the back of your finger due to wide band and padding
🤬 No taping needed to hold the splint in place
⚡️ Fast on-and-off with simple latch mechanism
These files are provided under the Creative Commons Attribution-NonCommercial 4.0 License (more details below)
This product is not a medical device.
It has not been approved, load rated, or in any way certified for safety or effectiveness.
We cannot guarantee the safety, performance, or effectiveness of this product, and use of it is purely at your own risk.
By downloading these files, you acknowledge that Hooper’s Beta and its constituents are not liable for any injuries, damages, or complications that may arise from its use. If you have an injury, we strongly recommend consulting a licensed healthcare provider or specialist.
Pulley splints/supports are meant for grade III-IVa pulley injuries (which involve one or more complete ruptures). They are unnecessary for more minor pulley injuries and should not be used for non-pulley-related pain or undiagnosed finger pain.
For grade IVb injuries (complete tear of A2, A3, and A4 pulleys), advice from a skilled medical practitioner is required and as such use of pulley support should be guided by them.
If you are unsure whether a pulley support is right for you, seek guidance from a qualified practitioner. You may also consider using our finger injury assessment toolto learn more about the different grades of pulley injury.
3D printer with .2mm nozzle
PCTG filament
Foam or silicone for padding (we recommend 3mm self-adhesive EVA foam padding)
1️⃣ To determine what size splint you need, simply use your US ring size. If you don’t know it, first measure the circumference of your finger: https://youtu.be/U6xW-hTZOCw?si=oHlgkjoYO2o1vbq6
2️⃣ For A4 pulley injuries, make sure you take the measurement at the A4 region (middle phalanx).
3️⃣ If you have swelling, you may need to purchase multiple sizes (e.g., one for your current level of swelling and one for your normal ring size without swelling). Use your uninjured hand for reference if you don’t know your non-swollen ring size.
4️⃣ Use the chart to find the closest US ring size to your measurement: https://tinyurl.com/yurrhfxt
NOTE: These splints have been sized in a way that accounts for 3mm of EVA foam padding on top for cushion. If you use a different type or thickness of padding, your ring size may no long equate to the correct splint size for you.
Creative Commons Attribution-NonCommercial 4.0 License
You are free to download and use these files for personal use
You may NOT sell these files
You may NOT sell physical products made from these files
You may NOT use these files in any commercial capacity
You’re welcome to modify these for personal use. Please do not redistribute modified versions publicly.
Credit to Hooper’s Beta is appreciated (but not required)
STL File
Instructions
